72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable

Name: 72 Core G657A1 ADSS Fiber Optic Cable All Dielectric Self Supporting Cable
Brand: haiso
Price: 1 USD

Buy cheap 72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable product

Brand Name : haiso

Model Number : ADSS12 24core

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1km

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per Month

Delivery Time : 2-4days

Packaging Details : wooden drum/customized

Fiber type : G652D/G657A1

Application : Aerial/duct

Number of conductors : 12 24 48 core

Structure : Stranded loose tube

Operating temperature : -40 ~ +60 C

central strength member : FRP

Span : 120m

Contact Now

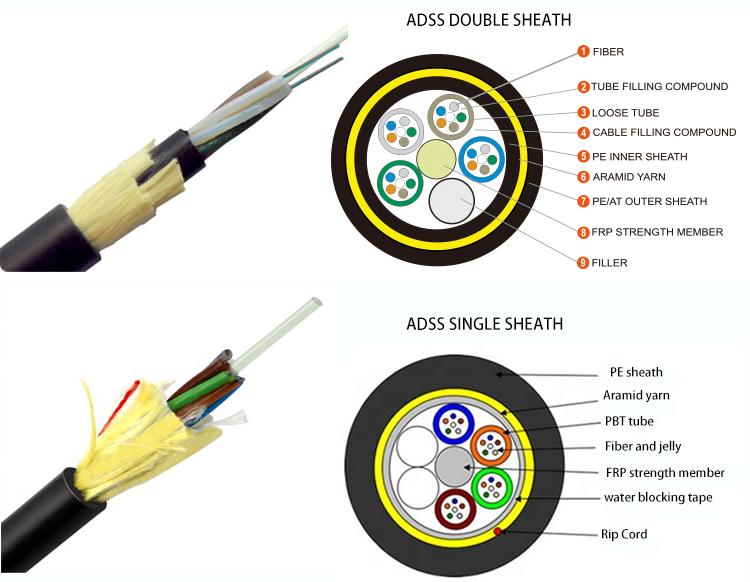

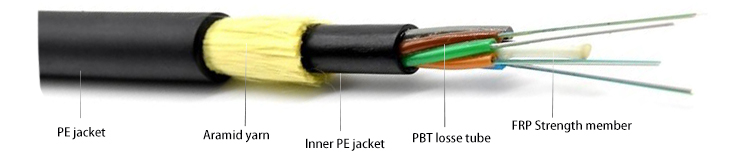

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

72 Core G657A1 ADSS Fiber Optic Cable , All Dielectric Self Supporting Cable

Technical Characteristics
Fiber Count	2-144
Span	50-1000m
Nominal Radian	1-3%
Nominal Load	800-100000N
Wind Speed	≤30 m/s
Cable Outer Diameter	10.5~18.0 mm
Cable Weight	130-260 Kg/km
Tensile Strength	2200 N/100mm
Min Bending Radius	Static	15D
	Dynamic	25D

Applications:

Adopted to the communication environment with high-voltage transmission network,lightning-prone areas and large span by the laying method of aerial.

Characteristics:

1.Good mechanical and temperature performance.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops.
3.Aramid yarn as strength making cable have excellent tensile strength performance.

4.Large span lengths and the largest span is over 1000m.

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.

7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
