Outdoor aerial self supporting 24core 48core g652d g657a fiber optical figure8 cable gytc8s
product description
Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket. Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design
Self-supporting Figure 8 design.
| Item | Description |
| Fiber | ITU G.652 fiber |
| Tube filling | Tube filling compound |
| Loose tube | Material | PBT |
| Diameter | 1.95mm±0.1mm |
| Outer sheath | Material | PE |
| Thickness | 1.6mm |
| Wire messager | steel wires |
| Wire diameter | 0.9mm |
| Armoured material | Plastic coated steel strip |
| Tension long term/short term | 2500N/5000N |
| Outer jacket | PE |
| | -40～+70℃ |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
| Torsion | Load:250N; number of cycles:10; twist angle:±90° No obvious |
| Tube color | blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua |
Characteristics
With good mechanical properties and temperature characteristics
Material of loose tube has good hydrolysis resistance and high strength
The loose tube is filled with special gel, which protect the optical fiber
Specially designed compact cable structure to effectively prevent casing from retracting
Anti-UV PE out sheath
Take the following measures to ensure the waterproof performance of the optical cable:
-Single steel wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated aluminum tape
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.Steel wire strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Cable Structure
Applications
Backbones and Access.
Installed aerially.
Guangzhou jiqian fiber optic cable Co.,ltd

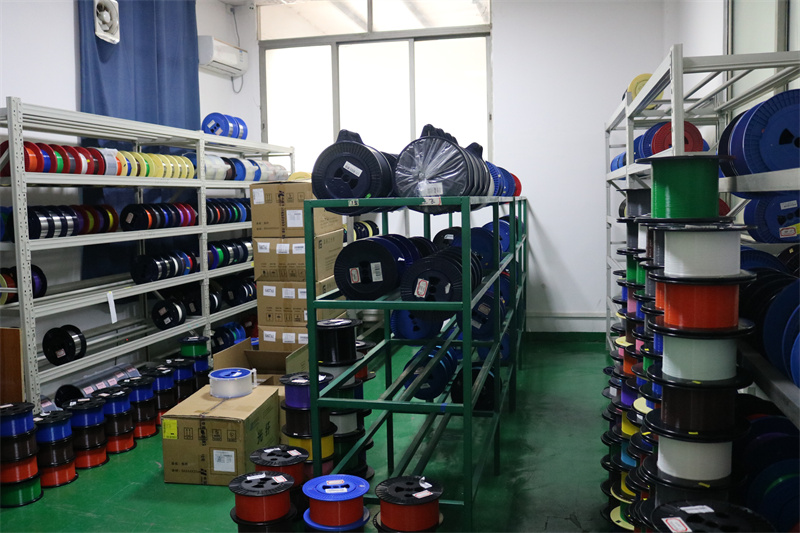

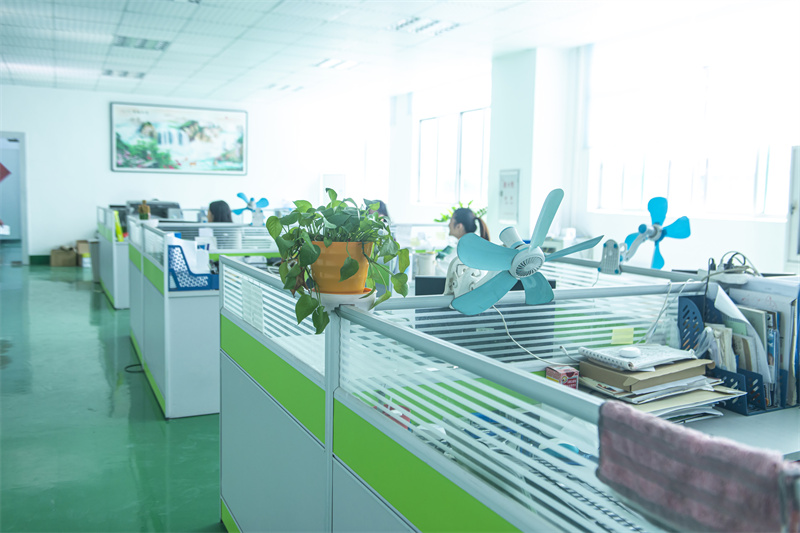

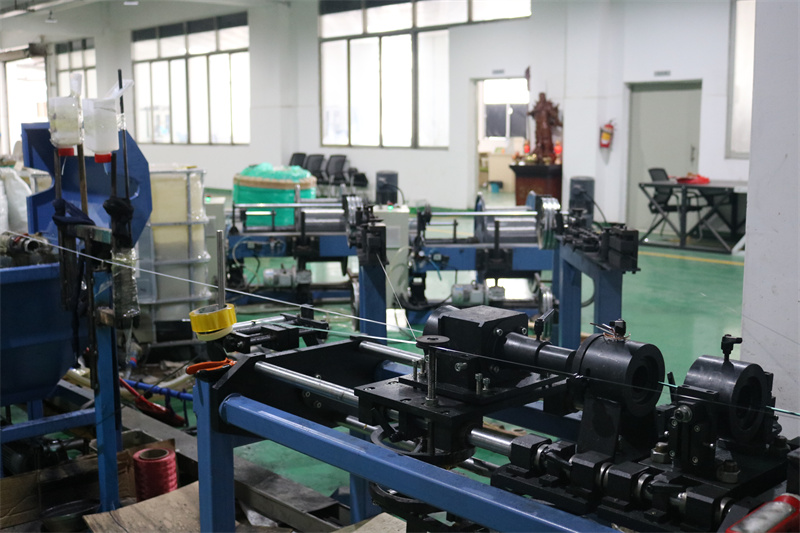

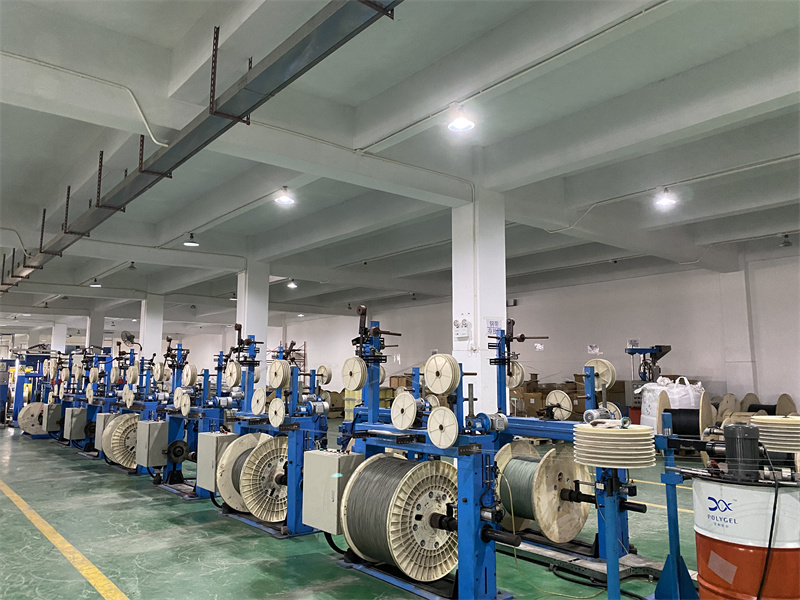

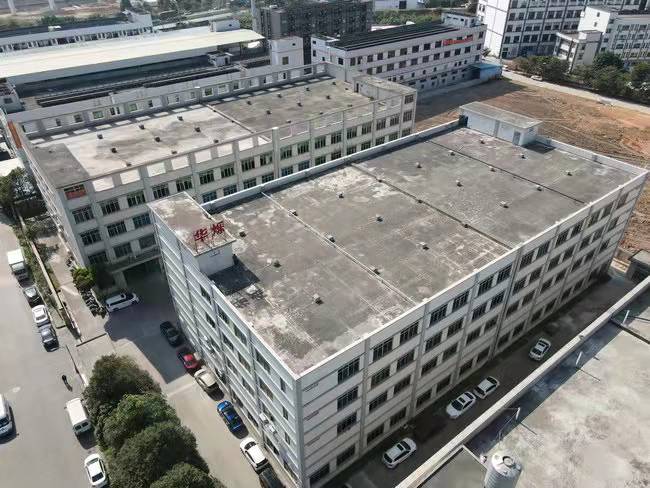

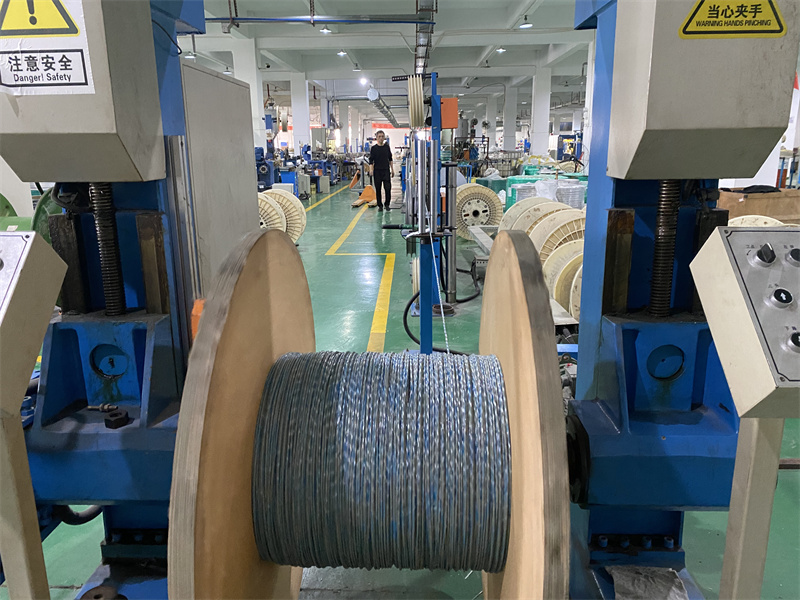

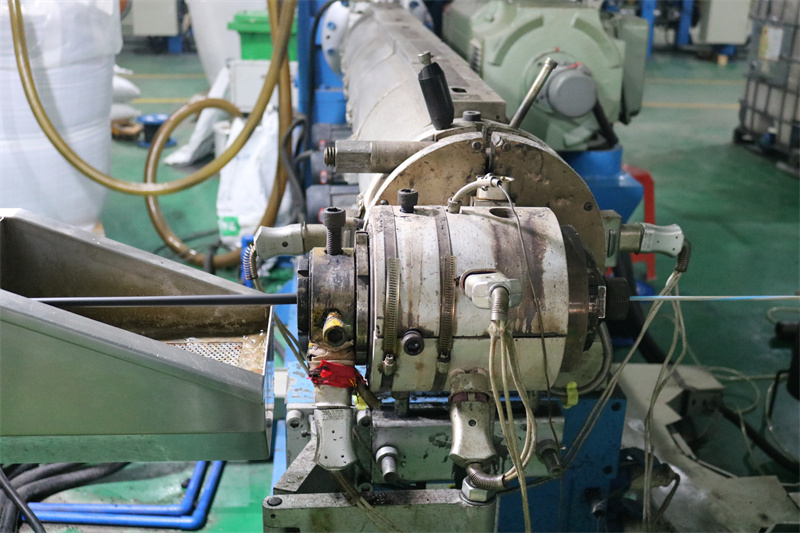

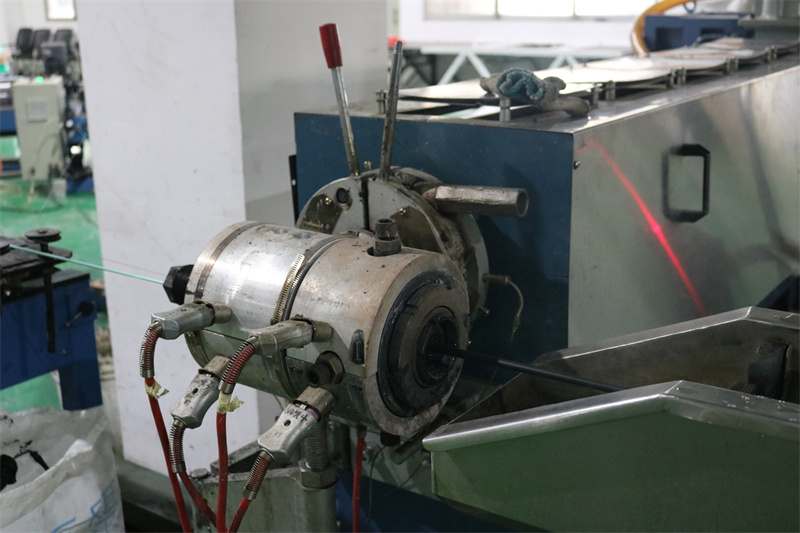

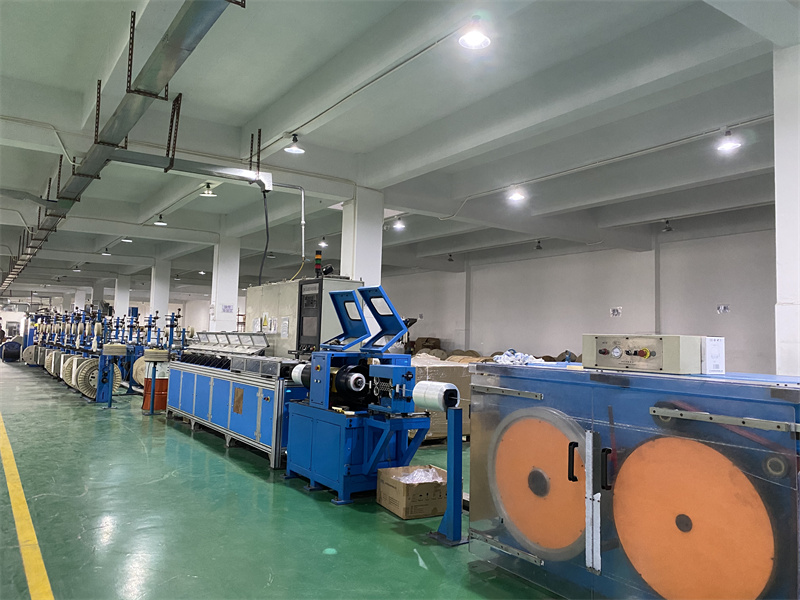

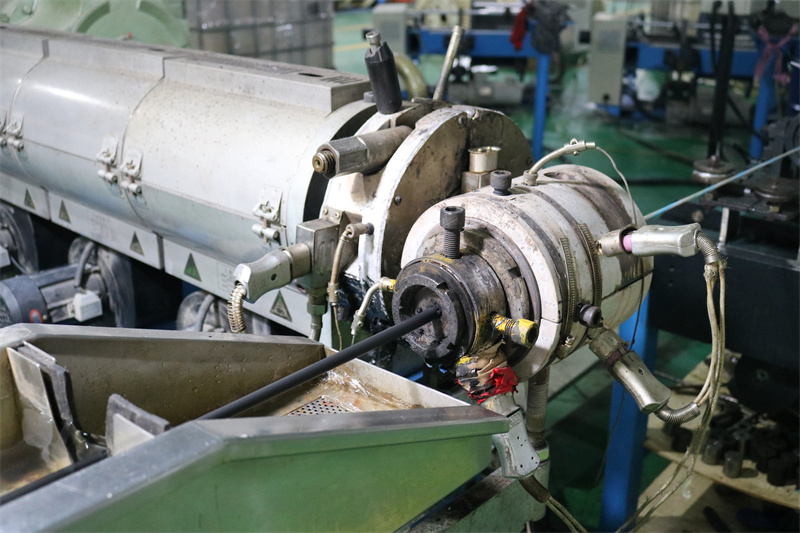

Guangzhou Jiqian fiber optic Cable Co., Ltd. is a high-tech company integrating manufacturer and trade. The factory covers an area of 5000 square meters, with more advanced optical fiber cable production equipments and testing equipments. Our company has R&D department, production department, quality inspection department, sales department, after-sales department, and logistics department. Our company passed the ISO 9001:2000 quality system certification in 2010. With a complete quality control system, excellent technical team, advanced equipment and reliable quality, our customers are all over the world.
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
